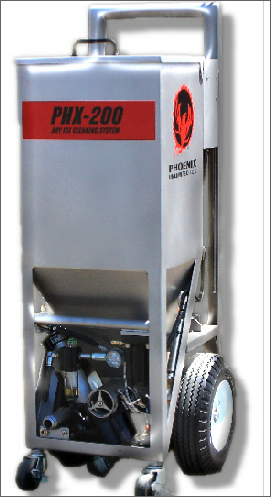

Increased Blasting Capabilities - The PHX-200 is a high pressure blasting unit, capable
of blasting pressures up to 250 psi.
Quick Air Hose Connection - Convenient front hook-up with a single blast hose that
is easily maneuvered. The angled control panel with easy-to-understand controls provides
easy viewing and accessibility. Large hopper capacity is fast loading and eliminates
frequent refilling.
Safety Interlocks and Guards - The safety interlock and guards prevent accidental
contact with any moving parts. 100% pneumatic operation eliminates electrical shock
hazards.
Navigates Easily - 18” Wide body easily fits through tight doorways and tight spaces.
The unit is lightweight and the large rubber tires negotiate rough surfaces.
Durable Construction - Reinforced stainless steel construction and molded rubber
casters are very durable. Unit is operational in any weather environment.
Quick Release Airlock - Built-in separator/filter for added protection. The quick-release
airlock makes for faster cleaning and inspection. Easy access to components and minimal
downtime for periodic maintenance.
Customer Service - Technical assistance is available 24/7 year round.
Specifications:
- Dimensions: 18” x 20” x 47” (W x L x H) (47cm x 51cm x 120cm)
- Dry Weight: 165 lbs. (74.84 kg)
- Hopper Capacity: Over 100 lbs. (45.5 kg) of pellets
- Ice Consumption Range: 0.5-5 lbs. (0.23 kg - 3.2 kg)/min.
- Supply Air Pressure: 70 psi - 250 psi (4.8 - 8.6 bar)
- Air Consumption Range: 100 CFM - 450 CFM
- Blast Pressure Range: 50 psi - 250 psi (2.8 - 17.2 bar)
- Inlet Air Temperature: 140° F (60° C) maximum
- Inlet Air Dew Point: Should not exceed +40° degrees F (+4.4° C)
- Inlet Air Connection: 1” NPT
New dry ice blasting machines, used machines, blaster repair/refurbish, blaster rentals
and on-site contract service cleaning. Cool Blast has what you need.
